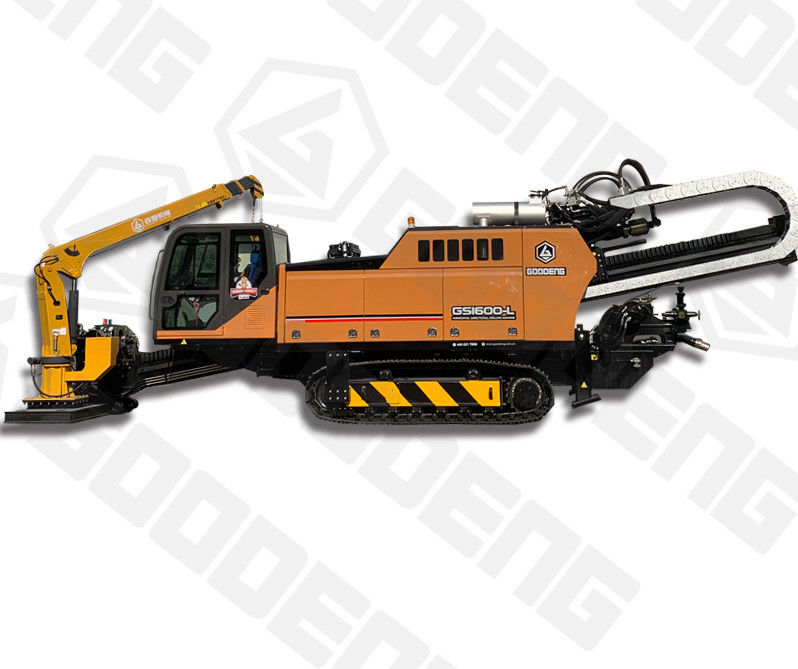

horizontal directional drilling machine 160ton, China top brand

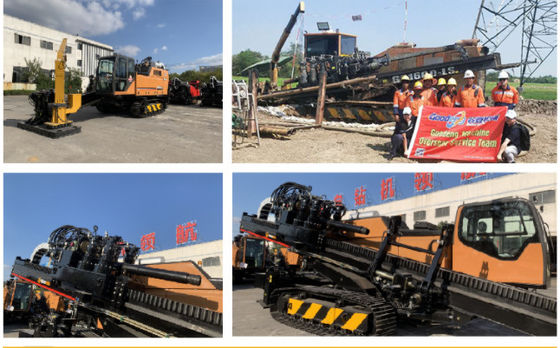

Large Image : horizontal directional drilling machine 160ton, China top brand

Product Details:

Place of Origin:	China
Brand Name:	goodeng
Certification:	ISO9001
Model Number:	GS1600-L

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in bulk
Delivery Time:	10-30days
Payment Terms:	T/T
Supply Ability:	2000sets per year

Contact Now

Detailed Product Description

Engine Power:	316KW	Rig Weight:	29000kg
Max.torque:	78000N·m

GS1600-LS Horizontal Directional Drilling Machine Technique Proposal

Ⅰ Main Technique Parameters:

Rig weight: 29000kg	Dimension(L×w×h mm):11000×2450×3100
Max. push&pull force 1700KN	Max.torque: 78000N·m
Max. push&pull speed: 37m/min	Max. rotation speed: 95r/min
Entry drill angle: 8-22°	Max. climbing gradient: 20°
Max.back-reamer aperture:1600mm(Soil depended)	Max. construction distance:1200m(soil depended)
Engine power: 316KW	Walking speed: 3-6Km/h(dual speed)

Ⅱ.Main equipments:

Power system: use Weichai engineering machinery special engine;
International first-class hydraulic system: Hengli variable piston pump, German Linde or German Rexroth hydraulic motor;
Mechanical hand to load and unload the drill rod.
3t crane.
Moveable cab with AC.
PLC intelligent program control system.
With wire. Wireless guiding.
Rotation-push-pull mutual coordination.
Track wire-control walking, there are two gears to adjust (high-speed. low-speed).

Ⅲ. Main Performance Characteristics

Weichai turbocharged engine has strong power and stable performance, and its fuel consumption is more than 20% lower than other engines;
With imported electric proportional motor, simple gear transmission structure, reliable performance, push-pull infinitely variable speed, top rank in working efficiency, the power head is reserved with reinforcement device(push-pull), the push-pull force can reach 1700KN.
Equipped with imported electric proportional motor, rotation is infinitely variable speed, which improved working efficiency greatly.
Dual speed motor from Korea desung excavator, max. walking speed can reach 6km/h, which don’t need load into truck for short-distance transition.
Low clamping center protects the drill rod effectively, and takes up small construction space; front and back clamp are separated, the clamping can change block according to drill rod specification.
Floating spindle further protects the drill pipe thread.
Four bar luffing mechanism makes big angle(0°-18°), low gravity center, good stability.
Wire-control ensures the safety of rig and people during walking, walking, transition, loading and uploading is convenient.
Fully open mechanical hand makes drill rod slip automatically, no need unload drill rod with people, saving labor charges.
Enlarged cab can lift up and down with warm/cool AC.
Liquid crystal system man and rig exchange can monitor rig condition any time, which can adjust rig work, making operation simpler and more comfortable.
