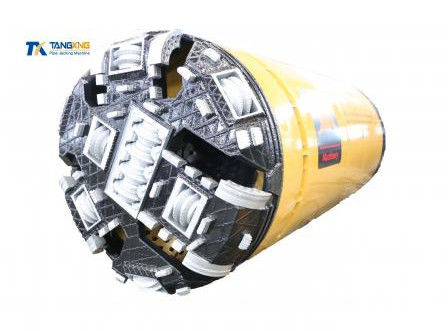

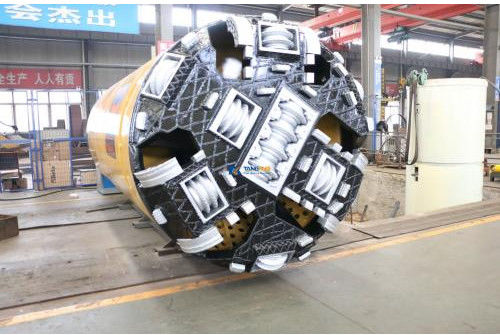

rock pipe jacking machine, microtunnel machine, microtunneling machine, microtunnel boring machine

Large Image : rock pipe jacking machine, microtunnel machine, microtunneling machine, microtunnel boring machine

Product Details:

Place of Origin:	CHINA
Brand Name:	tangxing
Certification:	ISO9001
Model Number:	different models

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in bulk
Delivery Time:	2 months
Payment Terms:	T/T
Supply Ability:	300sets per year

Contact Now

Detailed Product Description

Diameter:	φ1700mm

We are pipe jacking machine manufacture from China, and we can produce more than 300 sets of
pipe jacking machine per year, which covers the Dia. range from 500mm to 4000mm, and rectangular pipe
jacking machine also.

Please feel free to contact me Alice Cai 0086-18752825001 alicemachine at foxmail.com

rock pipe jacking machine, microtunnel machine, microtunneling machine, microtunnel boring machine

Features:

Rock pipe jacking machine adopts gear transmission mechanism, large transmission torque, there is no central axis, maintenance personnel can freely enter the slurry chamber, can tunneling in sand, gravel and rock

Technical Parameters:

φ1700mm Pebble Pipe Jacking Machine

Pipe Jacking Machine	OD	Pipe Jacking Machine OD (MM)		￠2000
		Length (MM)		5000
	Cutter Disc	Cutter Head Motor Power(KW*QTY)		37*2
		Revolution Speed(RPM)		3.7
		Torque (KN.M)		190
	Correcting System	Cylinder No. (PCS)		4
		Thrust (T*QTY)		80*4
		Max. Correcting Angle (°)		3.7
		Pump Station Motor Power (KW)		2.2
	Slurry Pipe Diameter (INCH)			4
	Machine Total Power(KW)			78
Jacking Cylinder	Total Thrust(T)			200
	Total No. (PCS)			4
	Stroke(MM)			2500/3000/3500
Control			Remote PLC Control(Touch Screen)
Soil			Sandy pebble rock gravel
