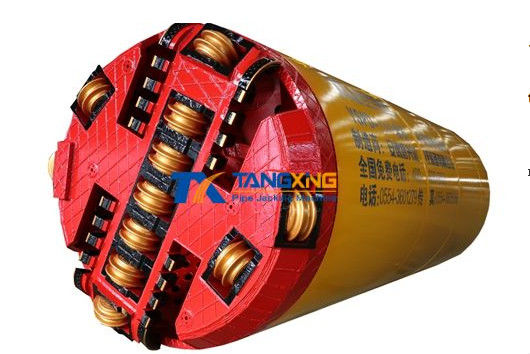

1600mm rock pipe jacking machine,micro tunneling machine,tunnel boring machine, pipe jacking equipment

Large Image : 1600mm rock pipe jacking machine,micro tunneling machine,tunnel boring machine, pipe jacking equipment

Product Details:

Place of Origin:	CHINA
Brand Name:	tangxing
Certification:	ISO9001
Model Number:	different models

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in bulk
Delivery Time:	2 months
Payment Terms:	T/T
Supply Ability:	300sets per year

Contact Now

Detailed Product Description

Diameter:	φ1600mm

We are pipe jacking machine manufacture from China, and we can produce more than 300 sets of
pipe jacking machine per year, which covers the Dia. range from 500mm to 4000mm, and rectangular pipe
jacking machine also.

Please feel free to contact me Alice Cai 0086-18752825001 alicemachine at foxmail.com 1600mm rock pipe jacking machine,micro tunneling machine,tunnel boring machine, pipe jacking equipment

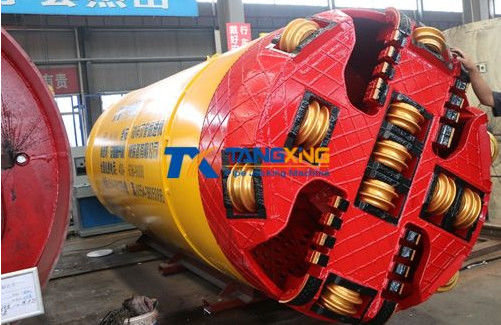

1600mm rock pipe jacking machine,micro tunneling machine,tunnel boring machine, pipe jacking equipment

1600mm rock pipe jacking machine/micro tunneling machine

E-mail:sales@tangxing.cn

Features
Technical Parameters
Related Cases

Features:

●Designed for gravel and rock(up to 150 Mpa).
●Driven by inner gear, big driving torque, no axis.
●Direct access to the tunnel face for maintenance and repair work .
●Through cutterhead rotation,stones or obstructions entering the crusher cone are crushed to a conveyable grain size.
●Bentonite injected into the annular gap reduces friction between the extrados of the pipe and surrounding soil.

Technical Parameters:

SPECIFICATIONS FOR 1600MM ROCK PIPE JACKING MACHINE
Inner Diameter	￠1600mm
OD*Length	￠1940*4900mm
Cutter	Motor Power	2*37KW
	Rated. Torque	190KN.M
	Revolution	3.7RPM
Steering System	Thrust*Qty	80T*4
	Angle	0~2.7
	Motor Power	2.2KW
Jacking Cylinder	Thrust*Qty	200T*4
	Stroke	2500/3000/3500MM
	Pressure	31.5MPA
Slurry Pipe	Diameter	4INCH
Machine Total Power		80KW
