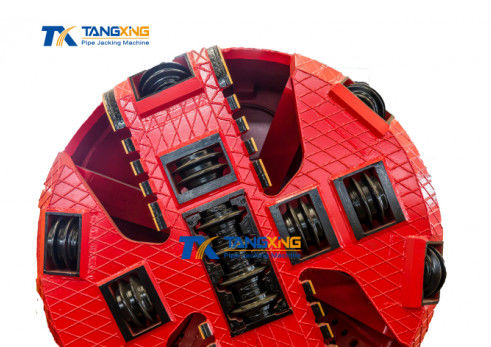

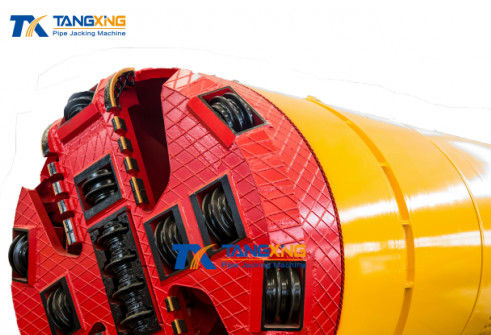

soft rock pipe jacking machine

Large Image : soft rock pipe jacking machine

Product Details:

Place of Origin:	CHINA
Brand Name:	tangxing
Certification:	ISO9001
Model Number:	Φ1650

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in bulk
Delivery Time:	one month
Payment Terms:	T/T
Supply Ability:	as you require

Contact Now

Detailed Product Description

Φ1650 Rock Pipe Jacking Machine

Features:

Rock pipe jacking machine adopts gear transmission mechanism, large transmission torque, there is no central axis, maintenance personnel can freely enter the slurry chamber, can tunneling in sand, gravel and rock

Technical Parameters:

φ1650mm Pebble Pipe Jacking Machine

Pipe Jacking Machine	OD	Pipe Jacking Machine OD (MM)		￠2000
		Length (MM)		5000
	Cutter Disc	Cutter Head Motor Power(KW*QTY)		37*2
		Revolution Speed(RPM)		3.7
		Torque (KN.M)		190
	Correcting System	Cylinder No. (PCS)		4
		Thrust (T*QTY)		80*4
		Max. Correcting Angle (°)		3.7
		Pump Station Motor Power (KW)		2.2
	Slurry Pipe Diameter (INCH)			4
	Machine Total Power(KW)			78
Jacking Cylinder	Total Thrust(T)			200
	Total No. (PCS)			4
	Stroke(MM)			2500/3000/3500
Control			Remote PLC Control(Touch Screen)
Soil			Sandy pebble rock gravel
