45t hdd machine, 45t hdd rig, 45t horizontal directional drilling machine, 45t horizontal directional drilling rig

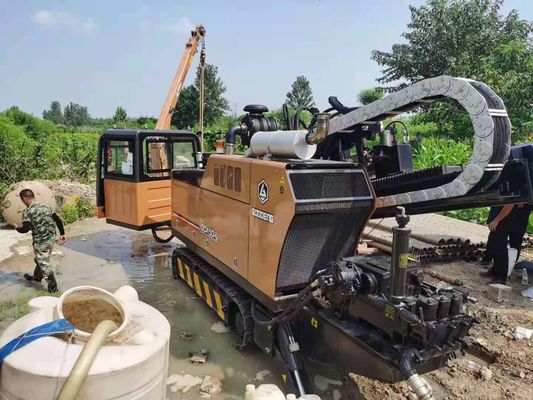

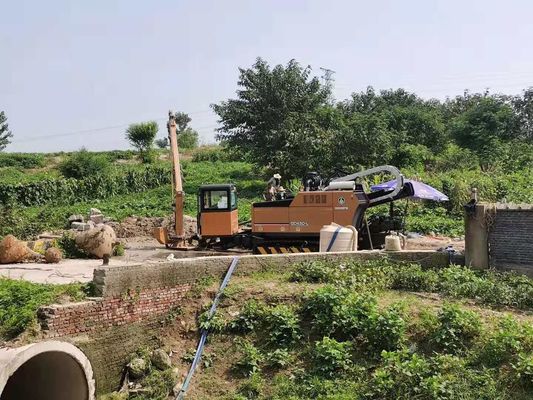

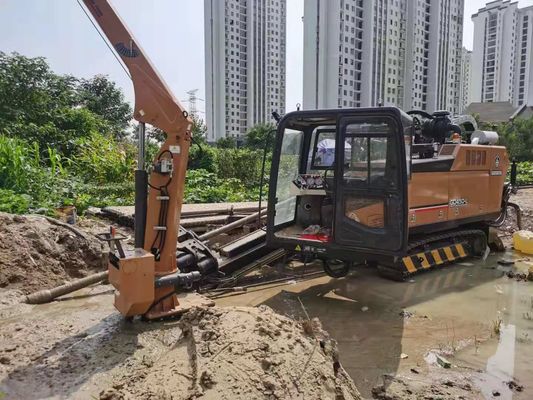

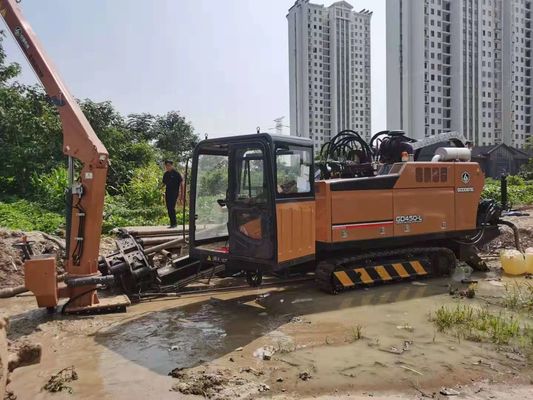

Large Image : 45t hdd machine, 45t hdd rig, 45t horizontal directional drilling machine, 45t horizontal directional drilling rig

Product Details:

Place of Origin:	CHINA
Brand Name:	Goodeng
Certification:	ISO9001
Model Number:	GD450-LS

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	rack container
Payment Terms:	T/T
Supply Ability:	2000sets per year

Contact Now

Detailed Product Description

Torque::	27000Nm

45t hdd machine, 45t hdd rig, 45t horizontal directional drilling machine, 45t horizontal directional drilling rig

Item	Parameter	Item	Parameter
Rig Weight (kg)	14500	Size L×W×H (mm)	8450×2320×2650
Max. Push & Pull force (KN)	480/960	Max. Torque (N*m)	27000
Max. Push & Pull speed(m/min)	55	Max. Rotation Speed (r/min)	116
Engine Power (KW)	194	Max. Mud Pump Flow (L/min)	600
Caterpillar Walking Speed (Km/h)	3-5	Max. Mud Pump Pressure (Mpa)	10
Entry Drill Angle (°)	12-22	Max. Climbing Gradient (°)	18
Max Aperture Diameter (mm)	Ф1300	Max. Drilling Length (m)	700

45t hdd machine, 45t hdd rig, 45t horizontal directional drilling machine, 45t horizontal directional drilling rig

As Mechanization Research Branch industrialization base of China Academy of Building Research, Goodeng Machine has independently developed almost 30 models of horizontal directional drilling machine from 5T to 1200T with strong and professional R & D team’s support, which has filled in multiple domestic and foreign technical blanks.

In 2018, “Goodeng Machine” had honor to get the Chinese Well-Known Trademark, which is the only enterprise to acquire in China's trenchless industry.
