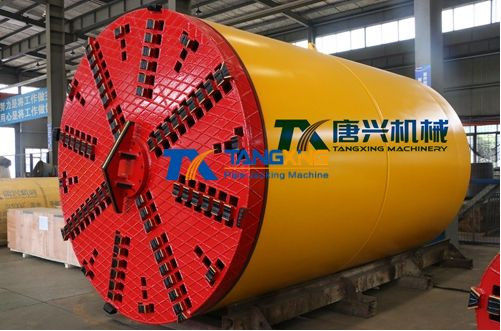

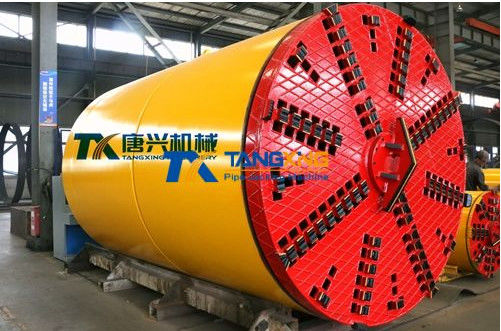

Φ3100mm slurry Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

Large Image : Φ3100mm slurry Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

Product Details:

Place of Origin:	CHINA
Brand Name:	tangxing
Certification:	ISO9001
Model Number:	different models

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in bulk
Delivery Time:	2 months
Payment Terms:	T/T
Supply Ability:	300sets per year

Contact Now

Detailed Product Description

Diameter:	φ3100mm

We are pipe jacking machine manufacture from China, and we can produce more than 300 sets of
pipe jacking machine per year, which covers the Dia. range from 500mm to 4000mm, and rectangular pipe
jacking machine also.

Please feel free to contact me Alice Cai 0086-18752825001 alicemachine at foxmail.com

Φ3100mm slurry Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

Features:

●Designed for all kinds of ground conditions, especially silt and sand.
●Stable construction excavation face; low construction disturbance to surrounding soil;low ground settlement.
●Independent water injection,grouting and cutter cleaning apparatus which is suitable for hard soil of high N value.
●Slurry pipeline promises the construction safety of the working shaft.
●Working continuously,high jacking speed.
●Remote control operation on the ground, fully automatic response within the head.

Technical Parameters:

SPECIFICATIONS FOR 3100MM Slurry Balance PIPE JACKING MACHINE
Inner Diameter	￠3100mm
OD*Length	￠3580*5400mm
Cutter	Motor Power	30*6KW
	Rated. Torque	1264KN.M
	Revolution	1.36RPM
Steering System	Thrust*Qty	155T*8
	Max Angle	2.5
	Motor Power	5.5KW
Jacking Cylinder	Thrust*Qty	200T*8
	Stroke	2500/3000/3500MM
	Pressure	31.5MPA
Slurry Pipe	Diameter	6INCH
Machine Total Power		200KW
