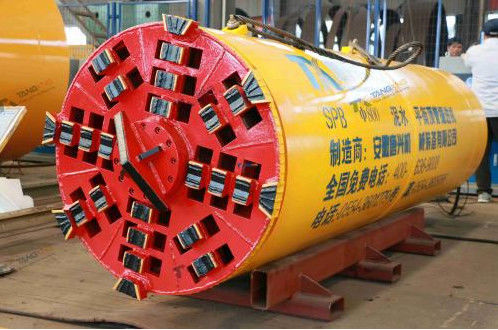

Φ800mm slurry Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

Large Image : Φ800mm slurry Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

Product Details:

Place of Origin:	CHINA
Brand Name:	tangxing
Certification:	ISO9001
Model Number:	different models

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in bulk
Delivery Time:	2 months
Payment Terms:	T/T
Supply Ability:	300sets per year

Contact Now

Detailed Product Description

Diameter:	φ800mm

We are pipe jacking machine manufacture from China, and we can produce more than 300 sets of
pipe jacking machine per year, which covers the Dia. range from 500mm to 4000mm, and rectangular pipe
jacking machine also.

Please feel free to contact me Alice Cai 0086-18752825001 alicemachine at foxmail.com

Wechat: 18752825001 or caiqixia88

Φ800mm slurry Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

Features:

●Designed for all kinds of ground conditions, especially silt and sand.
●Stable construction excavation face; low construction disturbance to surrounding soil;low ground settlement.
●Independent water injection,grouting and cutter cleaning apparatus which is suitable for hard soil of high N value.
●Slurry pipeline promises the construction safety of the working shaft.
●Working continuously,high jacking speed.
●Remote control operation on the ground, fully automatic response within the head.

Technical Parameters:

φ800mm Slurry Balance Pipe jacking machine

Pipe Jacking Machine	OD	Pipe Jacking Machine OD(MM)		￠980
		Length (MM)		3600
	Cutter Disc	Cutter Head Motor Power(KW*QTY)		22*1
		Revolution Speed (RPM)		5.2
		Torque (KN.M)		40
	Correcting System	Cylinder No. (PCS)		4
		Thrust (T*QTY)		38*4
		Max. Correcting Angle (°)		2.7
		Pump Station Motor Power (KW)		1.5
	Slurry Pipe Diameter (INCH)			4
	Machine Total Power (KW)			25
Jacking Cylinder	Total Thrust (T)			200
	Total No. (PCS)			2
	Stroke(MM)			2500/3000/3500
Control			Remote PLC Control(Touch Screen)
Soil			Soft Soil
