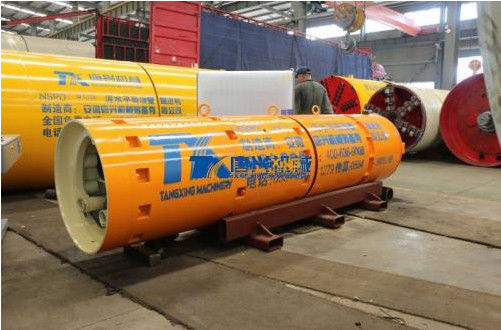

￠800~1350 slurry Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

Large Image : ￠800~1350 slurry Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

Product Details:

Place of Origin:	CHINA
Brand Name:	tangxing
Certification:	ISO9001
Model Number:	different models

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in bulk
Delivery Time:	2 months
Payment Terms:	T/T
Supply Ability:	300sets per year

Contact Now

Detailed Product Description

Diameter:	￠800~1350

We are pipe jacking machine manufacture from China, and we can produce more than 300 sets of
pipe jacking machine per year, which covers the Dia. range from 500mm to 4000mm, and rectangular pipe
jacking machine also.

Please feel free to contact me Alice Cai 0086-18752825001 alicemachine at foxmail.com

Wechat: 18752825001 or caiqixia88

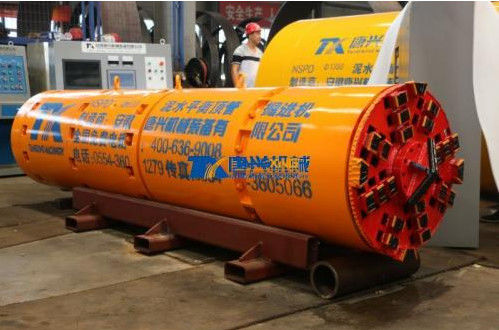

￠800~1350 slurry Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

Features:

●Designed for all kinds of ground conditions, especially silt and sand.
●Stable construction excavation face; low construction disturbance to surrounding soil;low ground settlement.
●Independent water injection,grouting and cutter cleaning apparatus which is suitable for hard soil of high N value.
●Slurry pipeline promises the construction safety of the working shaft.
●Working continuously, high jacking speed.
●Remote control operation on the ground, fully automatic response within the head.

Technical Parameters:

￠800~1350 Slurry Balance Pipe Jacking Technical Parameter:

Technical parameter	Concrete pipe diameter(mm)		￠800	￠1000	￠1200	￠1350
	Machine head OD×Length mm		￠980×3600	￠1220×3600	￠1460×3600	￠1640×3600
	Cutting head	Motor power Kw	22
		Max. torque KN.m	40
		Rotation rate:rpm	5.2
	Rectifying system	Cylinder no.	4
		Thrust: T	38×4	50×4	63×4	63×4
		Deviation angle	2.7
		Motor power:Kw	1.5	1.5	1.5或2.2	2.2
	Slurry intake & discharge system	Diameter(mm)	100
	Jacking speed: mm/min		0~200
	Machine head weight:(ton)		4.6	5.4	6.8	7.5
	Machine head total power: Kw		25
	cable		220m
	control		PLC remote control (touch screen)
	Application		Soft soil, hard soil clay,sandy soil & gravel
