2900mm EPB Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

Large Image : 2900mm EPB Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

Product Details:

Place of Origin:	CHINA
Brand Name:	tangxing
Certification:	ISO9001
Model Number:	different models

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in bulk
Delivery Time:	2 months
Payment Terms:	T/T
Supply Ability:	300sets per year

Contact Now

Detailed Product Description

Diameter:	￠2900

We are pipe jacking machine manufacture from China, and we can produce more than 300 sets of
pipe jacking machine per year, which covers the Dia. range from 500mm to 4000mm, and rectangular pipe
jacking machine also.

Please feel free to contact me Alice Cai 0086-18752825001 alicemachine at foxmail.com

Wechat: 18752825001 or caiqixia88

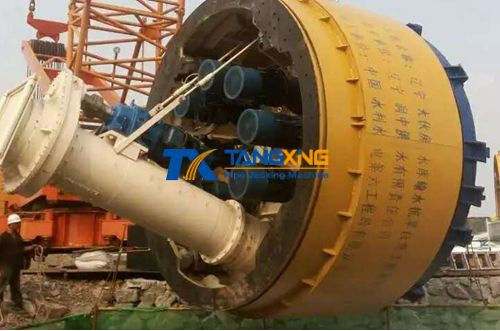

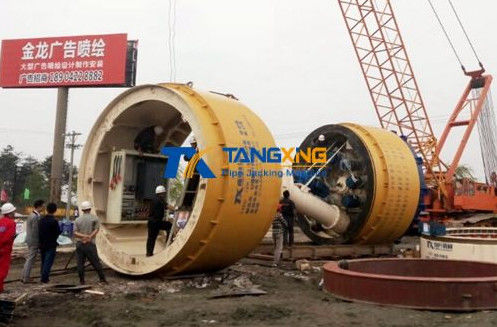

2900mm EPB Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

Features:

●Designed for medium-coarse sand, weathered and strong weathered sand stone.
●Low speed and large toque drive mechanism, strong excavation force,3 times overload coefficient.
●Independent water injection and grouting system improves excavation soil condition applied to different ground.
●Low ground settlement, the minimal cover depth is only 1.5 times of the pipe OD.
●Central supported cutter,compact and lightweight, long service life, easy maintenance.
●Screw conveyor transfer soil in large quantity and conveyable grain size.
●2.5°steer angle,controlled by electrical system, easy operation, quickly response, digital displayed.
●Full face cutting, 100% opening rate.

Technical Parameters:

SPECIFICATIONS FOR 2900MM EARTH BALANCE PIPE JACKING MACHINE
Inner Diameter	￠2900mm
OD*Length	￠2420*5000mm
Cutter	Motor Power	30*5KW
	Rated. Torque	906KN.M
	Revolution	1.58RPM
Steering System	Thrust*Qty	155T*8
	Angle	2.5
	Motor Power	5.5KW
Jacking Cylinder	Thrust*Qty	200T*8
	Stroke	2500/3000/3500MM
	Pressure	31.5MPA
Screw Conveyors	Motor power	30KW
	Conveyor ID	520MM
	Excavated QTY	75m³/h
Machine Total Power		190KW
