2500mm EPB Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

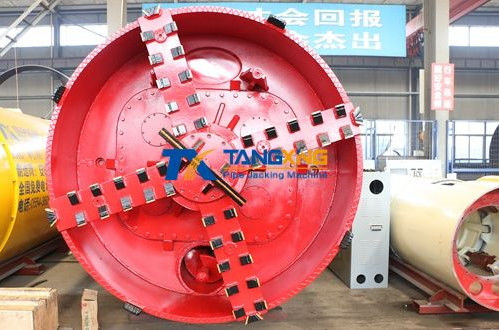

Large Image : 2500mm EPB Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

Product Details:

Place of Origin:	CHINA
Brand Name:	tangxing
Certification:	ISO9001
Model Number:	different models

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in bulk
Delivery Time:	2 months
Payment Terms:	T/T
Supply Ability:	300sets per year

Contact Now

Detailed Product Description

Diameter:	￠2500

We are pipe jacking machine manufacture from China, and we can produce more than 300 sets of
pipe jacking machine per year, which covers the Dia. range from 500mm to 4000mm, and rectangular pipe
jacking machine also.

Please feel free to contact me Alice Cai 0086-18752825001 alicemachine at foxmail.com

Wechat: 18752825001 or caiqixia88

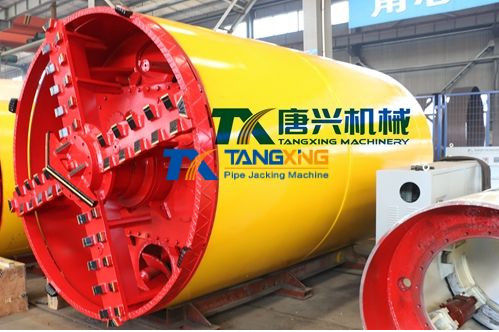

2500mm EPB Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

Features:

●Designed for medium-coarse sand, weathered and strong weathered sand stone.
●Low speed and large toque drive mechanism, strong excavation force,3 times overload coefficient.
●Independent water injection and grouting system improves excavation soil condition applied to different ground.
●Low ground settlement, the minimal cover depth is only 1.5 times of the pipe OD.
●Central supported cutter,compact and lightweight, long service life, easy maintenance.
●Screw conveyor transfer soil in large quantity and conveyable grain size.
●2.5°steer angle,controlled by electrical system, easy operation, quickly response, digital displayed.
●Full face cutting, 100% opening rate.

Technical Parameters:

Dimensions	Pipe Jacking Machine OD	3160mm
Dimensions	Length	5000mm
Cutter Head	Cutter Head Motor Power	5*37KW
	Revolution Speed	1.58RPM
	Torque	1114KN.m
Steering System	Cylinder No.	8
	Thrust	120T*8
	Max. Steering Angle	2.5°
	Pump Station Max. Pressure	31.5MPa
	Cylinder Stroke	80mm
	Pump Station Motor Power	2.5kw
Screw Conveyor	Diameter	520 mm
	Motor Power	30KW
	Excavated Qty.	75M3/H
Total Weight		40T
Total Power		220KW
Control	Remote PLC Control(Touch Screen)
Soil	Normal soil, sand, clay
