3500mm EPB Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

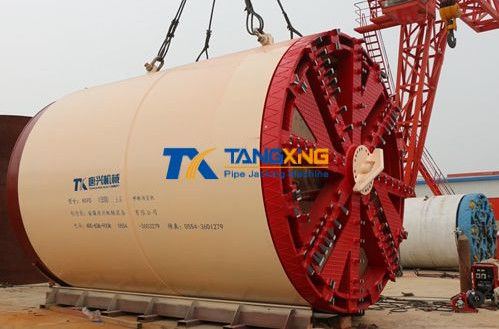

Large Image : 3500mm EPB Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

Product Details:

Place of Origin:	CHINA
Brand Name:	tangxing
Certification:	ISO9001
Model Number:	different models

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in bulk
Delivery Time:	2 months
Payment Terms:	T/T
Supply Ability:	300sets per year

Contact Now

Detailed Product Description

Diameter:	￠3500

We are pipe jacking machine manufacture from China, and we can produce more than 300 sets of
pipe jacking machine per year, which covers the Dia. range from 500mm to 4000mm, and rectangular pipe
jacking machine also.

Please feel free to contact me Alice Cai 0086-18752825001 alicemachine at foxmail.com

Wechat: 18752825001 or caiqixia88

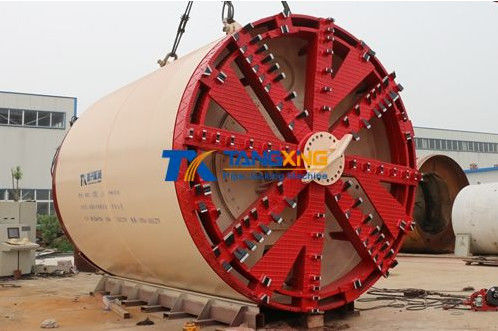

3500mm EPB Pipe Jacking Machine, pipe jacking machine, microtunneling machine,tunnel boring machine

Features:

●Designed for medium-coarse sand, weathered and strong weathered sand stone.
●Low speed and large toque drive mechanism, strong excavation force,3 times overload coefficient.
●Independent water injection and grouting system improves excavation soil condition applied to different ground.
●Low ground settlement, the minimal cover depth is only 1.5 times of the pipe OD.
●Central supported cutter,compact and lightweight, long service life, easy maintenance.
●Screw conveyor transfer soil in large quantity and conveyable grain size.
●2.5°steer angle,controlled by electrical system, easy operation, quickly response, digital displayed.
●Full face cutting, 100% opening rate.

Technical Parameters:

Technical parameter	Concrete pipe diameter(mm)		Φ3500
	Machine head OD×Length mm		Φ4160*5800
	Cutting head	Motor power Kw	37*7
		Max. torque KN.m	1902
		Rotation rate:rpm	1.36
	Rectifying system	Cylinder no.	8
		Thrust: T	200*8
		Deviation angle	2.5
		Motor power:Kw	7.5
	Screw conveyor	Motor power kw	37
		ID of conveyor mm	Φ700
		Excavated quantity m3/h	146
	Jacking speed: mm/min		0~100
	Machine head weight:(ton)		75
	Machine head total power Kw		250
	cable		220m
	control		PLC remote control (touch screen)
	Application		Soft soil,hard soil,clay,sandy soil & gravel
