6900*4960mm Rectangular pipe jacking machine

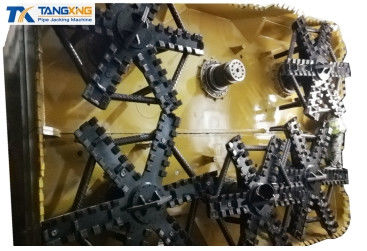

Large Image : 6900*4960mm Rectangular pipe jacking machine

Product Details:

Place of Origin:	CHINA
Brand Name:	tangxing
Certification:	ISO9001
Model Number:	6900*4960mm

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in bulk
Delivery Time:	one month
Payment Terms:	T/T
Supply Ability:	300sets per year

Contact Now

Detailed Product Description

6900*4960mm Rectangular pipe jacking machine

Features:

●Full section cutting
●Keeping earth pressure balance, low construction disturbance to surrounding soil..
●High space utilization rate, fewer construction area..

Technical Parameters:

Dimensions	Pipe Jacking Machine OD	492069205600mm
	Length	5600mm
Cutter Head	Cutter Head Motor Power	379,309KW
	Revolution Speed	0-1.6rpm
	Torque	270,333KW
Steering System	Cylinder No.	18
	Thrust	200
	Max. Steering Angle	up&down2.0 left&right1.2
	Pump Station Max. Pressure	31.5MPA
	Cylinder Stroke	150
	Pump Station Motor Power	15KW
Screw Conveyor	Diameter	520mm
	Motor Power	60KW
	Speed	15.3R/MIN
Total Weight		100T
Total Power		678kw
Control	Remote PLC Control(Touch Screen)
Soil	Normal soil, sand, clay

6900*4960mm Rectangular pipe jacking machine
