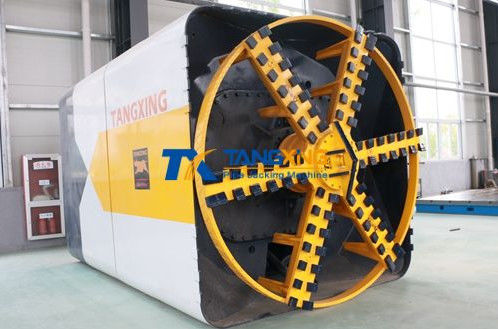

2700*2700mm Rectangular pipe jacking machine

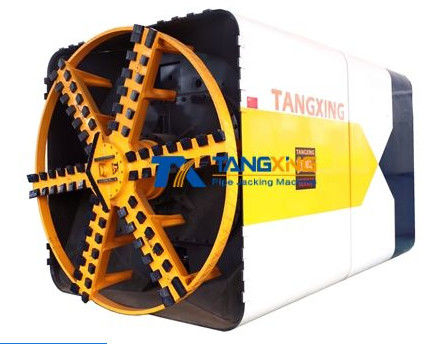

Large Image : 2700*2700mm Rectangular pipe jacking machine

Product Details:

Place of Origin:	CHINA
Brand Name:	tangxing
Certification:	ISO9001
Model Number:	2700*2700mm

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in bulk
Delivery Time:	one month
Payment Terms:	T/T
Supply Ability:	300sets per year

Contact Now

Detailed Product Description

2700*2700mm Rectangular pipe jacking machine

Features:

●Full section cutting
●Keeping earth pressure balance, low construction disturbance to surrounding soil..
●High space utilization rate, fewer construction area..

Technical Parameters:

Dimensions	Pipe Jacking Machine OD	2700*2700 mm
Dimensions	Length	4900mm
Cutter Head	Cutter Head Motor Power	4*30KW
	Revolution Speed	1.79 RPM
	Torque	640 KN.m
Steering System	Cylinder No.	8
	Thrust	120T*8
	Max. Steering Angle	2.5°
	Pump Station Max. Pressure	31.5MPa
	Cylinder Stroke	95mm
	Pump Station Motor Power	7.5kw
Screw Conveyor	Diameter	400 mm
	Motor Power	22 KW
	Speed	0-16.3r/min
Total Weight		37T
Total Power		146 KW
Control	Remote PLC Control(Touch Screen)
Soil	Normal soil, sand, clay

2700*2700mm Rectangular pipe jacking machine
